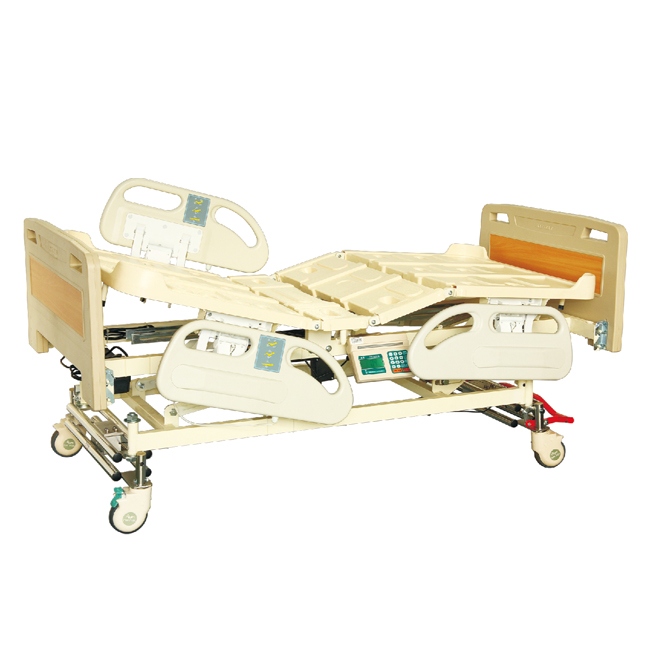

FUNCTION DESCRIPTION：

1.   Dimensions Length 214cm, width 96cm, bed size length 195cm, width 88cm ± 5%

2.   Bed lift displacement of 27cm, can be increased from 47.5 cm to 74.5cm ± 5%

3.   Back angle: derricking angle ( 0 ~ 80 °) leg angle: lifting angle (0 ~ 40 °) ± 5%

4.   Tilt control: 12 ° ± 5%

MATERIAL SPECIFICATION：

1.  The bed is a steel, surface powder coating processing

2.  Both sides of the bed drainage hook design, bed with IV drip insert the holder

3.  The one-piece steel head and foot board for ABS, surface mount wood grain melamine board, with a fire, do not fall off, easy to scratch the characteristics

4.  Bed panel made ​​of ABS material, the groove design each bedplate Jieyou ventilation holes the design and parts bound with fixing holes, bed panel with drainage ditch design prevents liquid mattress direct contact

5.  Fence for four security fence as a whole is made of ABS plastic material, fence cutting retracted bed bar, close to the bed

6.  Fence within key controller operable head, feet, bed lift and head knee linkage

7.  Lift control 24VDC DC motor system

8.  5 "in control dust evil wheel wheels, dust cover prevents hair embroiled

DIGITAL SCALES SPECIFICATIONS：

1.  Scales using the latest digital scales, older analog scales

2.  Entire scales with digital sensors, digital display sensitivity high stability, not afraid to shock is not afraid to move

3.  The scales display digits for 5-digit display, using LCD display, LED backlight, super-power, long life

4.  The Scales weighing 300 kg, sensitivity of 50 grams

STANDARD EQUIPMENT：

1.   A high-density foam mattress

2.   One containing stainless steel two-stage IV drip
